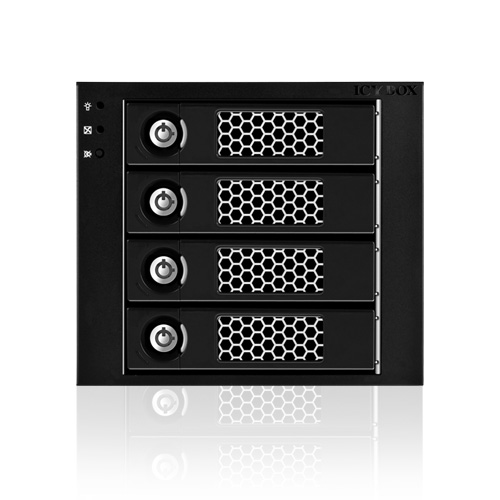

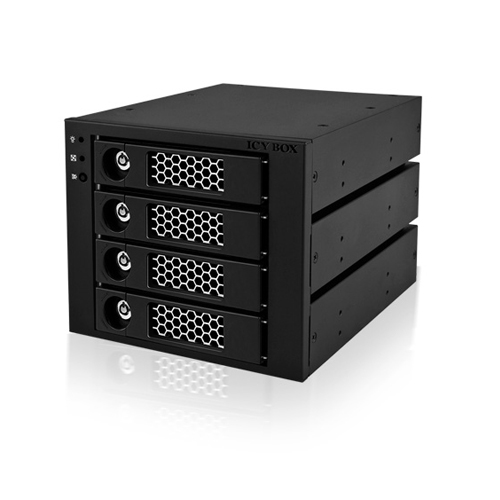

ICY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS Backplane

Website price:
$141.24
inc GST
Qty:

ICY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS Backplane

ARC Item Code:
CSACCIB554SSK
Form Factor:
Others
Manufacturer:
ICY Box
Size:
Others

Description



ICY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS Backplane

SKU: HDDICY554SSK4BY

CY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS BackplaneCY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS BackplaneCY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS BackplaneCY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS BackplaneCY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS BackplaneCY BOX- IB-554SSK, 4bay Dual Channel SATA/SAS Backplane



Specifications

• 4x 3.5" SATA or SAS HDD in 3x 5.25" bay
• 2x host connector (dual channel) for each SAS HDD
• Hard disk capacity not limited
• SATA host interface 3.0 Gbit/s

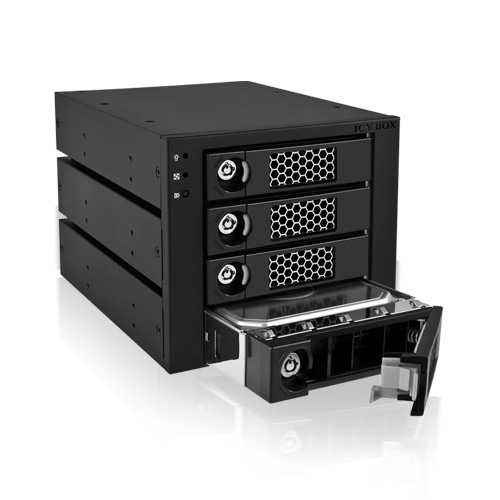

• HDD tray with key lock
• Hot Swap


Technical Data







 Model:

IB-554SSK





 Article No.:

55104





 EAN Code:

4250078184409





 Brand:

ICY BOX





 Category:

Backplane





 Colour:

Black





 Material:

Aluminium





 Required space:

3x 5.25"





 Carrier:

4x

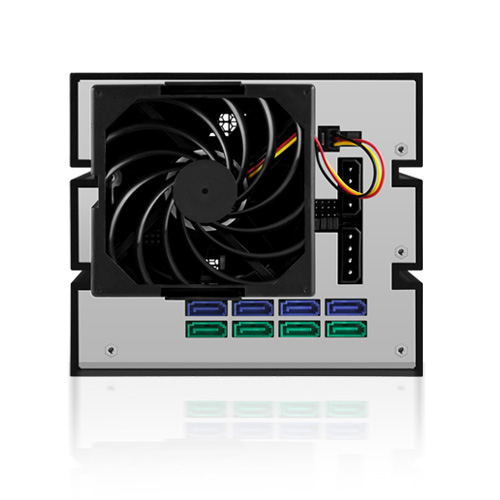

 Fan:

1x 80x80x25 mm (Detachable)





 HDD size (inch):

3.5"





 HDD size (cm):

8.89 cm





 HDD capacity:

No limit





 HDD interface:

4x 3.5" SAS/SATA





 Host interface:

8x SATA (Dual Channel)





 Transfer rate:

Up to 3.0 Gbit/s





 Hot Swap:

Yes





 Plug & Play:

Yes





 Lock:

Yes





 Operating system:

OS independent





 Power connector:

2x Molex 4Pin (12+5 V)





 Alarm:

Audio alarm for fan failure and over-heat, Audio alarm mute switch button on the front, Alarm temperature adjustable (45°C, 55°C, 75°C)





 LED:

Power, Fan failure, Over heating, additional LED on each tray for HDD presence, access and failure

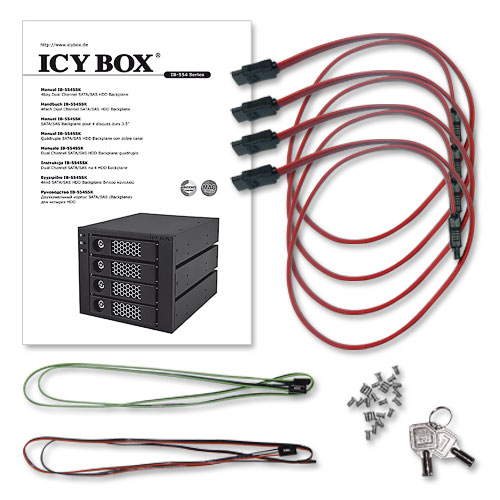

 Packing content:

1x IB-554SSK backplane, 8x case screw,18x HDD screw, 2x key, 2 sets of access and HDD fail signal cable, 4x SATA cable (with latchable connectors), 1x manual
